Detailed Introduction of ZK Tube Screw Conveyor

Date:2016-09-20 Source:zk corp Views:

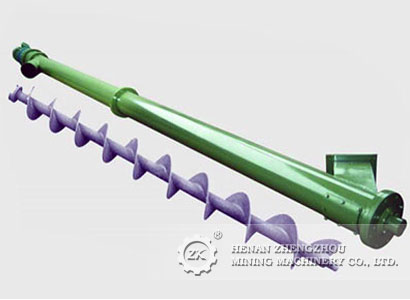

Tube screw conveyor is a new type of conveying machinery, it also can be seen as a kind of spiral conveyor. It is applicable to construction materials, metallurgy, chemical industry, food and other industries for the delivery of the powder, granular and small pieces of material. Especially in conveying the material with peculiar smell, because that the conveyor has good sealing performance, so it will not pollute the environment due to the leakage of dust in the conveying process. Tube screw conveyor can carry on the process of drying, cooling and mixing in the process of conveying and in some processes it can replace belt conveyor and screw conveyor.
Working principle of tube screw conveyor
When the spiral tube rotates, material between its internal spiral groove rotates and be lifted up spiral tube due to the centrifugal force and friction force together. under the action of gravity to slide along the spiral groove so that the material can be moved along the axial direction of the spiral. Transmission and supporting structure of tube screw conveyor are similar to that of rotary drum dryer. That is driven by the small gear wheel rotation. The cylinder seat installed on the flange supporting ring is arranged on the supporting wheel.
Advantage of tube screw conveyor.
1 It achieved clean and environmentally friendly production, especially suitable for conveying dusty, hot (under 200 ℃) and sharp odour material.
2 The wear treated screw is more wearable and stronger than traditional common screw. It can significantly increase the service life of the screw
3 It can achieve multi-point feeding and multi-point discharging according to user's process layout.
4 The redesigned discharging structure makes the discharging smoother.
5 Compact structure, less wearing parts, convenient to install, operate and maintain.
Tube screw conveyor is a bulk material conveying equipment with novel structure and excellent performance, it has high wear resistance. The scraper of tube screw conveyor is used synthetic materials which weight is light and service life is more than 6 times higher than the cast iron. And it is convenient to use, tube screw conveyor can be combined into a variety of delivery types, use of special flexible is convenient, it can be used alone and also can be used in combination.
Henan Zhengzhou Mining Machinery Co.,Ltd is a professional company in mining equipments, we can provide the tube screw conveyor with best price for you. Welcome to visit our company!
