Guangxi 100,000 m³/a Pickling Sludge Ceramsite Production Line
1. Project Overview:
Project address: Wuzhou, China
Construction unit: Guangxi Wuzhou Jinhai Stainless Steel Co., Ltd.
Product name: Pickling sludge ceramsite equipment
Production scale: 100,000 cubic meters per year
Service scope: equipment supply, installation and commissioning.
2. Project Description
This project is mainly to produce 100,000 cubic meters of pickling sludge (hazardous waste) ceramsite production line, the main equipment of ceramsite rotary kiln, cooler, dryer, roller granulator, feeder, double-shaft mixer and other equipment Design, manufacture, installation and commissioning. The project is mainly to process pickling sludge, mix it with waste soil, fly ash, etc. according to a certain proportion, then age it, then granulate and calcinate to form ceramsite. Using the high-temperature reducing atmosphere of the ceramsite kiln can harmlessly and immobilize the pickling sludge, and the products can be used in building materials, pointing out a new process route for the harmless treatment of hazardous waste.
3. Equipment Parameters
|
No. |
Equipment Name |
Equipment Model |
Remarks |
|
1 |
Ceramsite plug-in rotary kiln |
φ2.2×8m+3m+φ1.85×10m/φ2.5×18m |
|
|
2 |
Raw material dryer |
φ1.8×20m |
|
|
3 |
Feeder |
ZJ490×3400mm |
|
|
4 |
Double shaft mixer |
ZJ400×3200mm |
|
|
5 |
Roll granulator |
DG800×700mm |
|

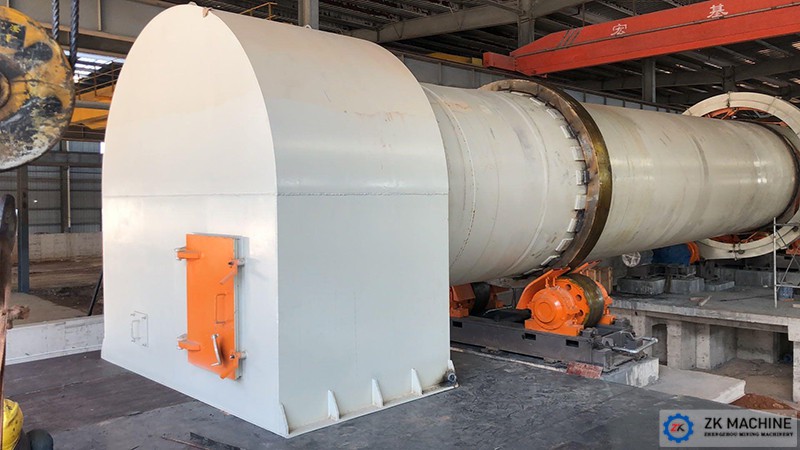

4. Project Photos
