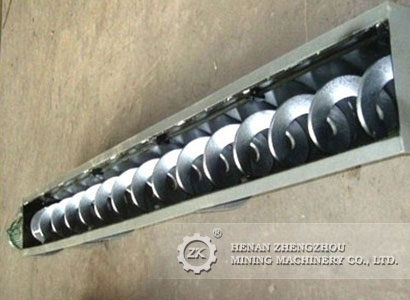

Automatic Stainless Steel sludge screw conveyor

Screw conveyor is widely used, generally divided into two kinds: a shaft screw conveyor, no shaft screw conveyor; shaft screw conveyor for non-stick dry powder materials and small particles (such as: cement, fly ash, Lime, grain, etc.); and non-shaft screw conveyor suitable for the conveyor by the sticky and easy to wrap the material (such as: sludge, biomass, garbage, etc.). The working principle of the screw conveyor is the rotation of the spiral blade to push the material to the conveyor, so that the material does not rotate with the screw conveyor blade is the weight of the material itself and the screw conveyor chassis friction on the material resistance.
The main thing is to convey the sludge with the screw conveyor (no shaft screw conveyor). The best conveyor for sludge is to use a sludge screw conveyor. The sludge screw conveyor is characterized by strong adhesion, paste-like viscous materials such as sludge in sewage, slag with high moisture content Soil and so on.

Sludge screw conveyor is characterized by simple structure, small cross-sectional size, good sealing, reliable work, low manufacturing cost, easy intermediate loading and unloading, reversible direction, and can be transported in the opposite direction. During the transportation process, the material can be stirred, mixed, heated and cooled. Through the loading and unloading gate can adjust the material flow. But not easy to transport perishable, viscous, easy to agglomerate and large pieces of material. The material is easy to be broken during the conveying process, and the screw and the groove are easy to wear. Unit power is large. In use to keep the trough seal and the screw and the trough between the appropriate gap.
