Mechanical rapping bags filtration systems

Date:2016-10-28 Source:zk corp Views:

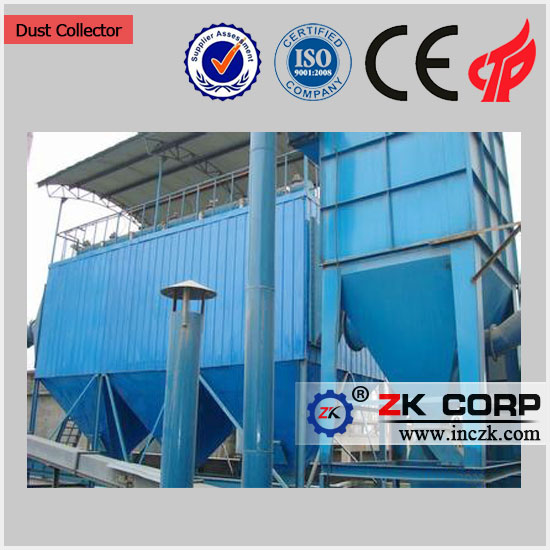

Mechanical rapping bags filter is a kind of dust collector used in cement, building materials, ceramics, electronics, chemicals, footwear, foundry, plastic, aluminum, metallurgy, power, leather, food, machinery processing, nonferrous metals and other industrial fields ,which used to removal dust and purification equipment.Mechanical vibration bag filter has a good cleaning effect, high efficiency, large gas volume, low maintenance workload , simple equipment, safe and reliable operation, is the ideal industrial dust treatment equipment.

Working principle
Mechanical vibration bags filter is the usage of fiber woven fabric bag filter components to capture solid dust particles in the gas dust removal device, its working principle is dust through the filter cloth fibers, due to inertial effects and fiber contact Is intercepted, the dust collected on the filter bag regularly through the cleaning device to remove and fall into the hopper, and then through the ash discharge system. The dusty flue gas enters the air inlet chamber from the upper part of the mechanical vibration bag filter. Some coarse particles fall into the hopper, due to inertia. The rest of the dusty gas enters the intake chamber through the intake manifolds and evenly passes the upper plate into the filter bag, a large number of dust stuck in the filter bag, part of the dust directly through the bottom board fell into the hopper.

Mechanical vibration bag filter basic structure is consist of the box, gray door, filter bag, mechanical vibration device and other parts, the components installed in a vertical frame, the structure is extremely compact. Dust gas is left in the filter bag inner surface, purified gas through the fan, directly inhaled by the fan into the outdoors, with the increase in filtration time, the filter bag The inner surface of the adhesion of dust continue to increase, the filter bag resistance increases, thus affecting the dust removal effect, the use of automatic mechanical vibration, vibration cleaning or manual mechanical vibration for tens of seconds, so that the inner surface of the filter bag dust Shake down, the dust fell ash door, falling dust by the ash discharge valve row.

Advantage:
1. High efficiency dust removal can capture more than 0.3 micron particle size dust, dust removal efficiency up to 99% or more;
2. The use is flexible, air volume can be handled from the millions of cubic meters per hour to hundreds of thousands of cubic meters, can be located directly in the vicinity of small machine room unit, can also be made of large dust collector;
3. Simple structure, stable operation, less investment, easy maintenance.

 ZK CORP design team has a strong non-standard site dust collecting systems design capability, advanced modular design technology, according to the site conditions of professional fans, professional pipeline design and installation of construction capacity, so that each section of dust collection system design can meet the industrial customers complex dust requirements.
