Application of Cyclone Dust Collector
Date:2016-08-28 Source:zk corp Views:

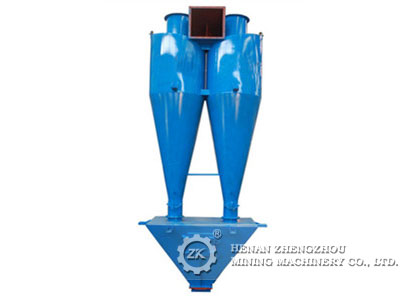

Cyclone dust collector system structure is simple and easy to manufacture, installation and maintenance management, equipment investment and the operating cost is low, which makes it be widely used in separating solid and liquid particles from the air stream or separating solid particles from the liquid. The cyclone dust collector system is composed of an air inlet pipe, exhaust pipe, cylinder, cone and ash unloading valve.
Under normal operating conditions, the centrifugal force acting on the particle is 5 -2500 times of gravity, so the efficiency of the cyclone is significantly higher than that of the gravity settling chamber. Based on this principle, a cyclone dust removal device with a dust removal efficiency of more than ninety percent is successfully developed. Among the mechanical dust collector, cyclone dust collector is one of the highest efficiency equipment and it is used to remove non viscous and non fibrous dust. In terms of technical and economic considerations, the control range of pressure loss of cyclone dust collector is generally 500-2000Pa, therefore, it belongs to the medium efficiency filter, and can be used for high temperature flue gas purification, it is a kind of dust collector which can be used in boiler flue gas dust removal, multi stage dust removal and pre dust removal. Its main disadvantage is that the removal efficiency of fine particles (<5 m) is low.
Main structural characteristics:
The cyclone dust collector is also called cyclone separator, which is a kind of dry gas solid separation device which is separated from the airflow through the centrifugal force generated by the rotating gas in the device. The cyclone dust collector has the following characteristics:
1 Simple structure, no moving parts, no special auxiliary equipment, small floor area, manufacturing, installation and investment is less.
2 Operation and maintenance is simple, medium pressure loss, power consumption is small, operation, maintenance cost is low.
3 Greater flexibility in operation, stable performance, not affected by the concentration of gas containing dust, temperature limits. There are no special requirements for the physical properties of the dust. At the same time, different materials can be used to make or lined with different wear resistant and heat resistant materials according to the different requirements of chemical production to improve the service life. Cyclone dust collectors are generally used to collect particles of 5-15 micron or more and the dust removal efficiency can reach above 80%. Cyclone dust collector is widely used in industrial furnace flue gas dust removal and plant ventilation and dust removal, industrial pneumatic conveying system of gas solid two-phase separation and pneumatic drying and recovery.
Henan Zhenghzou Mining Machinery Co.,Ltd provide professional cyclone dust collector and the design of the dust collector system is advanced.
