Brief Introduction of Cement Clinker Cooler
Date:2016-08-25 Source:zk corp Views:

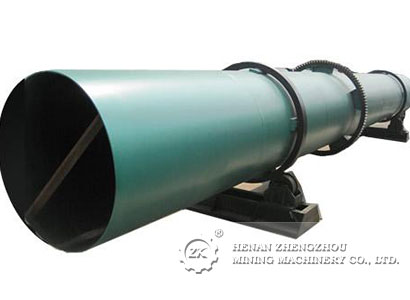

Cement clinker cooler is an important equipment in cement production line, which action is to cool the calcined materials. It belongs to rotary cylinder equipment. The cement clinker cooler produced by ZK can also be widely used in the cement building materials, nonferrous metallurgy, ferrous metallurgy, refractory materials, chemical raw materials, ceramics and paper making and so on. They has the characteristics of large capacity, high degree of mechanization, simple maintenance and so on.
Cooling machine is one of the important equipment in rotary kiln system. High temperature material produced in rotary kiln need to be cooled to a certain temperature through the cooling machine, which can be transported, stored and processed. Cooling machine can also carry a large number of high temperature materials used in air to recover the heat, which makes the combustion air into the kiln be preheated to high temperature to strengthen the calcination and reduce heat consumption.There are 2 types of cooling machine in ZK, single cylinder cooling machine and multi cylinder cooling machine.
Function of cooling machine
1 As a process equipment, it undertakes the task of high temperature clinker quenched. Quench can prevent clinker mineral crystal growth, which is conducive to the clinker strength and abrasion performance improvement. At the same time, the quench can make liquid solidified be vitreous, which is conducive to the improvement of the stability of clinker.
2 As a thermal equipment, the cooling machine is responsible for heating up the secondary air into the kiln and tertiary air into the furnace. Heating the secondary air and tertiary air to be high temperature in the pre decomposition kiln system not only can recovery the clinker heat effectively, It can also raise the fuel burn rate and keep the whole kiln system with an optimized thermal distribution.
3 As the heat recovery equipment, it can recycle a lot of enthalpy of kiln clinker carried out to reduce the consumption of coal combustion system.
4 As a clinker conveying equipment, it bears the task of conveying high temperature clinker. The cooling of high temperature clinker is beneficial to the transmission and storage of clinker.
Advantages of ZK coolers:
1 More heat recovery.
2 The cooling time of the clinker is short.
3 Low temperature of clinker after cooling.
4 The quality of the cooling unit of the air consumption of clinker is less.
5 Simple structure, convenient operation, easy maintenance, high efficiency.
Henan Zhengzhou Mining Machinery Co.,Ltd is professional in cement clinker cooler, you can contact us with any questions about cement clinker cooler.
