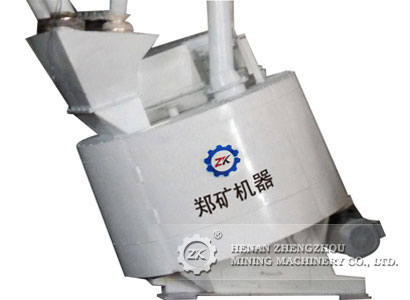

ZKZL Series Clean Type Strong Granulator
Date:2016-08-17 Source:zk corp Views:
Production introduction
ZKZL series clean powerful new-type granulator is developed on the basis of foreign advanced technology combined with China's current oil fracturing proppant production status. It is mainly used in oil fracturing proppant (ceramsite sand) production, can also be applied to pulverized coal, limestone, coal gangue, clay and other powder, granular, small pieces of material into a ball.
Features of new-type granulator
Advantages of the granulator:
1 Granulation process is in full closed rotary drum internal and internal rotating barrel is in the micro vacuum state, no dust pollution, cleanness and environmental protection.
2 The whole process is controled by computer through PLC, simple operation, high degree of automation.
3 The rotor keeps dynamic balance after the surface is treated with wear resistance, which can ensure its high speed, good stability, reliability and wear resistance and thus make the whole work stable and reliable.
4 The wear resistance of the scraper surface is also carried out., the bottom and the wall of the rotary drum are provided with a wear resistant lining plate, so the whole rotary drum component has a high service life.
5 Drum unloading mechanism with a high degree of automation is fully hydraulic.
6 The rotor and the drum are respectively driven by the main motor and the auxiliary motor, both of which are AC frequency conversion motor, which can adjust the speed according to the process requirements, and the adaptability is strong and universal.
7 Through the mixing of the high speed rotor and the low speed rotating drum, the cutting and collision of the material form a specific material flow field. Granulating principle is advanced, the granulator is of good quality and high efficiency.
8 The whole structure is compact, the auxiliary hydraulic system and the lubricating system are all set to become one, the space is small, and the appearance is smooth and beautiful.
ZKZL series clean powerful granulator is mainly composed of a drum, a rotor assembly, a scraper device, unloading feeding device, a machine frame, etc. Thr main structure is as follows:
1 The rotor and the drum are both frequency conversion and continuous speed regulation, which is convenient for adjusting the rotating speed of the rotor and the rotary drum according to the technological requirement, at the same time, it is energy saving.
2 Rotor is arranged in the special eccentric position of the rotary drum, rotor and the main motor is connected through a belt, planetary rotor disc is arranged at the bottom of the rotor, the rotor disc and turn tube reverse rotate at high speed, which make it easy to form a particular flow to achieve fast and powerful granulation.
3 The wall part and the bottom of the rotary drum are respectively arranged with a wall scraper and a bottom scraper, and it can adjust upper, lower, left and right, which can facilitate the adjustment of the gap between the wall scraper and the bottom scraper and the rotary drum to compensate the abrasion of the scraper.
4 After special surface treatment, the planet rotor disk, scraper and other parts easy to wear are with high hardness and wear resistance.
5 Multiple sealing materials are arranged at the combination part of the rotary drum and the machine frame to ensure that no dust inside the drum leak.
