Introduction

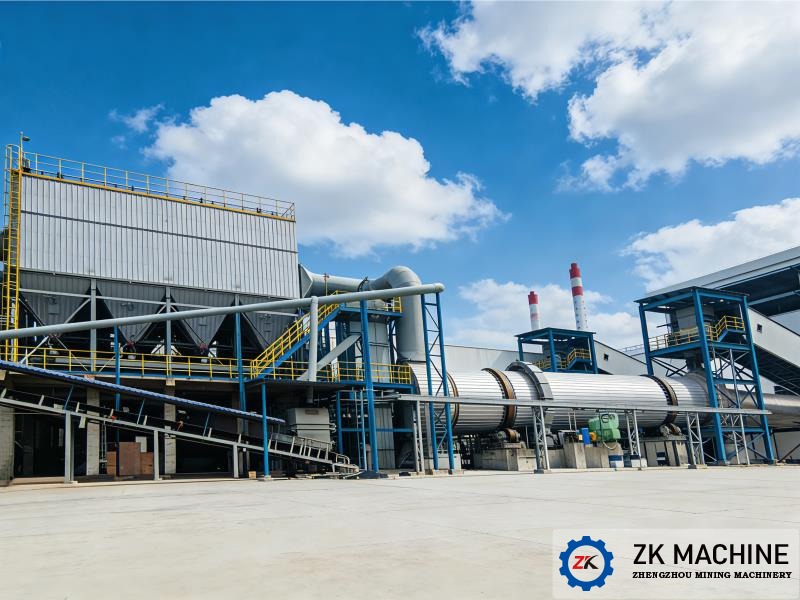

Rotary dryers are known as the workhorse of industrial dryers. They are able to process a wide variety of materials, and can lend a hand in nearly any industry requiring industrial drying solutions.The material inside the rotary dryer has heat exchange with the high temperature flue gas through shell rotating and material lifting by lifter.

The rotary dryer has many good characters like: high drying efficiency, big capacity, high running rate, saving energy, easy for maintenance, long working life. Variety angle of the lifter will increase the heating exchange rate and short drying time.

Rotary Dryer Applications:

1. Drying Minerals & Ores: limestone, iron ore, clay, minerals etc

2. Drying Coal: coal slime, lignite, brown coal, coal gangue etc

3. Drying Sludge: industrial sludge, river sludge, municipal sludge etc

4. Drying Powder & Particles: iron sulphate, gypsum, fly ash, bentonite, kaolin, aluminum powder, mineral powder, coal ash, iron powder, fluorite powder, manganese ore powder etc.

5. Dying Corrosive material: fertilizer, slag etc.

Working Principle:

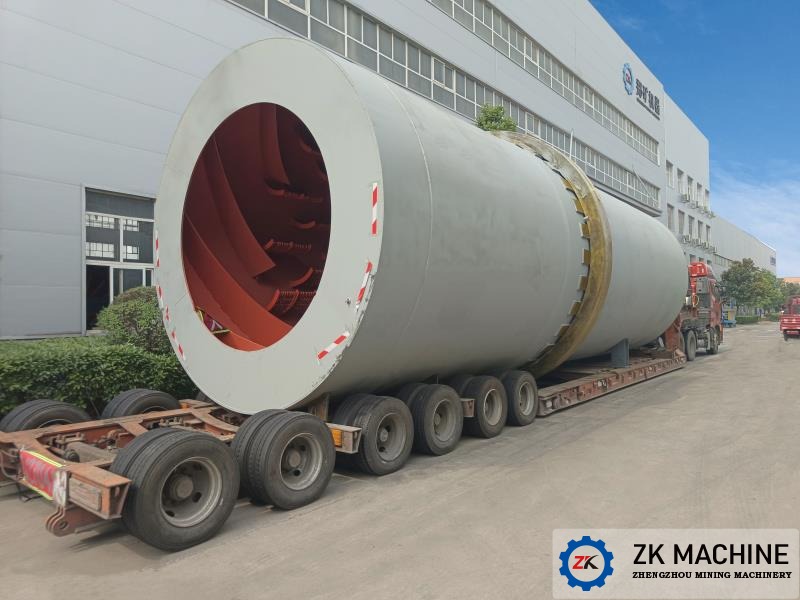

The rotary single-cylinder dryer is a device that rotates the material through the cylinder body and the lifting plate is set to carry the animal material and the high-temperature flue gas for full heat exchange, so that the material is dried. It has good drying effect, large production capacity and high operation rate. , Energy saving, environmental protection, easy operation and maintenance, and long service life of the whole machine. This type of dryer is equipped with a variety of angled circumferential lifting plate assembly devices inside the cylinder, which can greatly increase the heat exchange rate and shorten the drying time.

Features

1. Optimize the structure design of main components, the whole set of equipment is more cost-effective;

2. Using materials and processing techniques with excellent performance to ensure stable operation and reliable use;

3. Easy maintenance and operation, and greatly reduce the amount of maintenance;

4. A variety of equipment forms to meet the needs of different production processes.

Technical Parameter

Model (m)	Shell				Capacity (t/h)	Motor	Power (kW)	Reducer
Model (m)	Inner Diameter (mm)	Length (mm)	Slope (°)	Rev.Speed (rpm)	Capacity (t/h)	Motor Model	Power (kW)	Reducer
Ø1.2X12	1200	12000	1.8	5	2-5	YI60LM-6	11	ZQ500
Ø1.5X15	1500	15000	1.8	4.28	4-5	YI60L-6	18.5	ZQ650
Ø1.8X18	1800	18000	1.8	5	6-8	Y200LI-6	22	ZQ650
Ø2.0X20	2000	20000	2	3.38	7-10	Y200L2-6	30	ZQ650
Ø2.2X22	2200	22000	1.8	2.8	9-14	Y250M-6	45	ZQ650
Ø2.4X24	2400	24000	2.5	2.82	14-16	Y280S-6	55	ZQ750
Ø2.8X28	2800	28000	2.5	2.55	20-22	Y315S-6	90	ZL115
Ø3.0X30	3000	30000	2.5	2.69	22-24	Y315LI-6	132	ZL130
Ø3.2X32	3200	32000	2.5	2.6	24-26	Y315M-4	200	ZSY450
Ø3.6X36	3600	36000	2.5	2.51	30-40	Y315L2-4	315	ZL130
Ø4.0X40	4000	40000	2.5	2.09	40-45	YKK4003-4	400	ZSY630
Ø4.2X42	4200	42000	2.5	2.09	45-46	YKK4005-4	400	ZSY630
Ø4.5X45	4500	45000	2.5	1.92	46-50	YKK4502-4	500	MH3S230
Ø4.8X48	4800	48000	2.5	1.92	50-55	YKK4504-4	630	MH3S250
Ø5.0X 50	5000	50000	2.5	1.92	55-60	YKK4505-4	710	MH3S260
