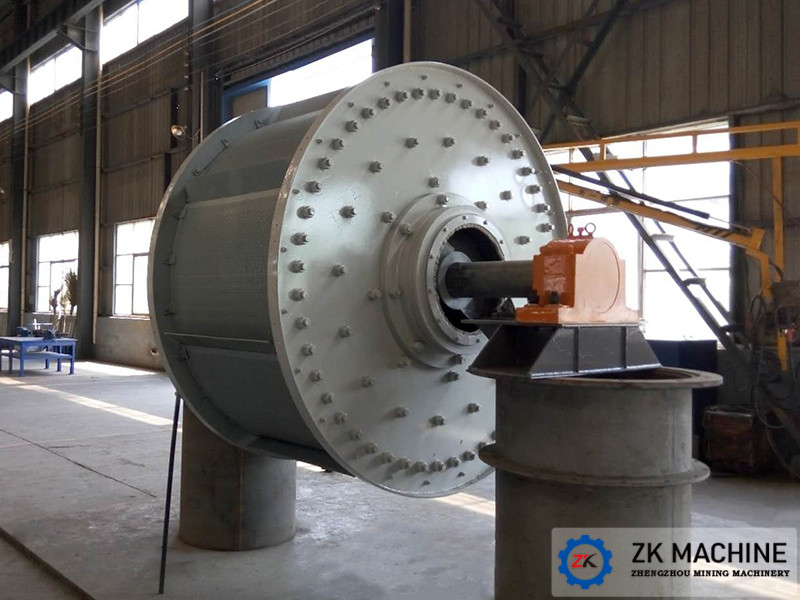

Cone Ball Mill

Model: GZM1541,GZM2742

Weight of loading-balls: 12-36(t)

Output: 4.1-117(t/h)

Application: Grinding plant

Our Advantage


    Its weight is reduced by 30—60% than the common rolling bearing ball mill.


   It is able to saving electricity 30-60% than common rolling bearing ball mill.


   The granularity of the discharging materials can reach 0.074mm.


   The Noise can be reduce by 5-10 decibel.

    Cone Ball Mill changes the instrinsic grinding machinestructure.its is body and ground plank are integral whole so when fixing.It can be lowered on a plane surface once only use double tired rol ler axletree with grille pattern forcing evacuation is instead by overfall patten controlling one.This can improve the milling of the granule and the quality dealt with is inc reased by 15%-20%.

    Working Principle of Cone Ball Mill:
    The cone ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth. Then the whole grinding process is ended.
