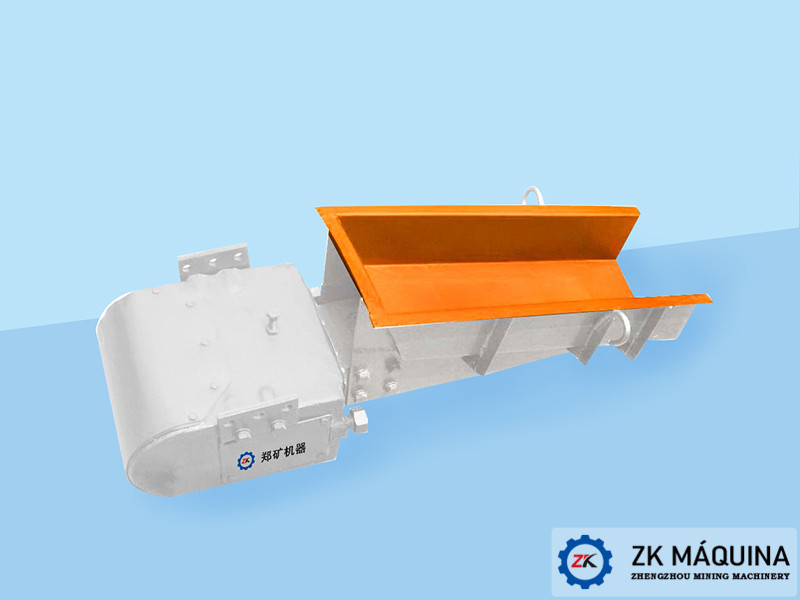

Electromagnetic Vibrating Feeder

Model: GZ1-GZ9

Capacity: 5-840(t/h)

Max feed size: 50-350(mm)

Application: Electricity, Chemical, Metallurgy, Construction

GZ series Electromagnetic Vibrating Feeder is mainly used for evenly, continuous and quantitative feeding for lump type, particle type and powder type materials, which is from storage silo and other storage equipment to receiving device with automatic feeding volume adjustment control.

Our Advantage

1

  Advanced vibration mechanism with low energy consumption because of working on low critical near resonance state;

2

   Adopt Silicon controlled rectifier half-wave rectifier control method, when operating, automatic control can be realized by adjust the development angle of silicon controlled.

3

   Due to the instantaneous change or opening and closing for material flow, the feeding volume with high accuracy.

4

   When operating, material will been throw up continuous, then jumping forward with parabolic trajectory, so that have less abrasion to screen cell.

5

   Widely application, alloy screen cell feeder can used for conveying wear and corrosive materials, sealing structure feeder can used for high pollution and easy to dust material.

5

   Feeder with features like small overall size, light weight, simple structure, no need lubrication and easy to maintenance.

    GZ Series Electromagnetic Vibrating Feeder is mainly used for evenly, continuous and quantitative feeding for lump type, particle type and powder type materials, which is from storage silo and other storage equipment to receiving device with automatic feeding volume adjustment control. The series of feeder have the features like simple structure, easy operation, no need lubrication, low energy consumption and homogenous feeding volume.


    Application:

    GZ Series Electromagnetic Vibrating Feeder is mainly used for mining, metallurgical, chemical, coal, machinery and other industries. It could feed block, grain and powder materials evenly and continuously into receiving device. This series products can be specially designed and customized acorrding to customers' demand. Furthermore, all types electomagnetic vibration feeder can be operated manual or automatic control.
